INLINE 6 Data Link Adapter for Cummins RP1210 Heavy Duty Diagnostic Full Set

sold in last hours
Your Price:
$399.00 $499.00

Quantity

Checkout Secure
Checkout Secure
Quantity Remaining:

90 of 100 Sold

Order in the next  to get it by

Viewing This Product



5 Great reasons to buy from us:

  • Image of Secure Ordering
  • Image of 365-Day Money-Back Guarantee
  • Image of 100% Satisfaction Guaranteed
  • Image of Easy Returns
  • Image of Free shipping (when you spend over $49)

INLINE 6 is a new Technology and Maintenance Council's RP1210 standard compliant diagnostic tool, which utilizes the latest electronic technology and delivers high performance and quality at the attractive price.

Supports latest  INSITE, PowerSpec and Calterm III programs and any other software applications that are fully compliant with the RP1210 standard.

INLINE 6 can communicate with your PC through a 9-pin serial connector;

and over a Universal Serial Bus (USB) through a 4-pin standard connector.

Adapter connects to vehicle power, the SAE J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.

Data Link Adapter comes with a full kit, containing 8 basic cables, and the INLINE PC software driver. Just load the software driver to your PC, connect all the hardware, and you are ready to perform the diagnostic tasks.

Features:
1. Supports SAE J1708/J1587 and J1939/CAN data links
2. Both CAN ports auto detect between 250 & 500 kbps
3. Supports USB full speed port at up to 2M baud rate
4. Custom USB cable includes thumbscrews for secure mounting to INLINE 6
5. Supports RS-232 PC serial port at up to 115.2k baud rate
6. Fully compliant with TMC's RP1210 standard
7. Small enough to fit in pocket
8. Attractive black powder coated aluminum housing provides ruggedness
9. Derives 8V to 50V DC power from vehicle
10. Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance
11. Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports
12. Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols
13. Certified to meet European CE requirements
14. Rated for -40° to +85° C operating temperature
15. Meets rigorous  in-cab environmental test requirements

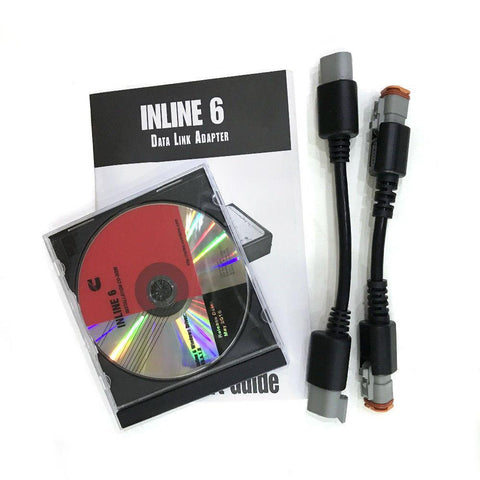

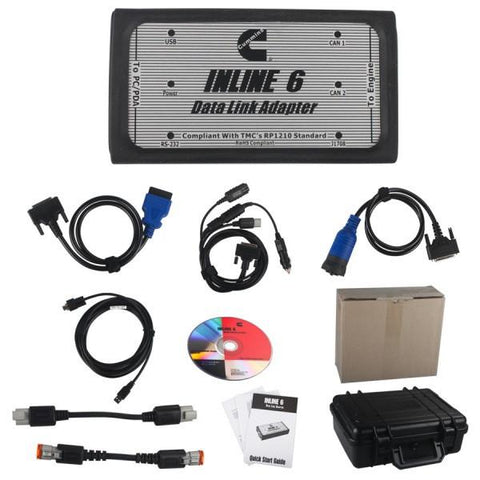

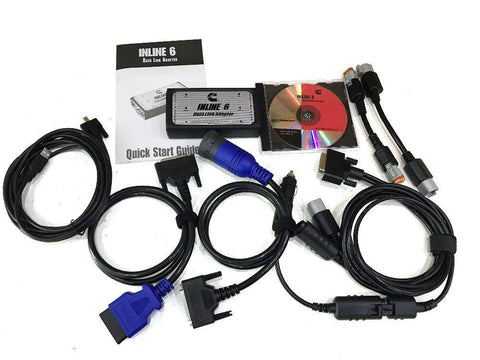

Package Contents:

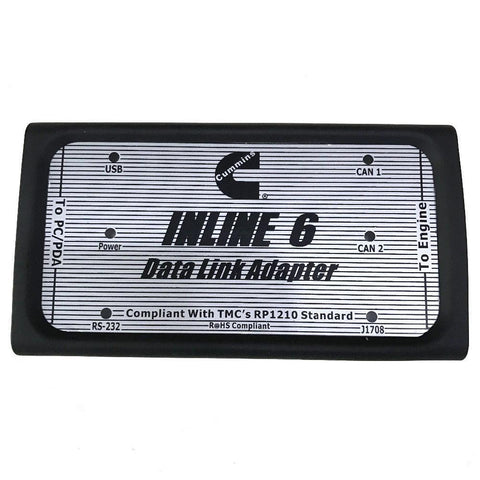

1 x INLINE 6 data link adapter (P/N 2892093)
1 x USB 14-foot  cable (P/N 2892176)

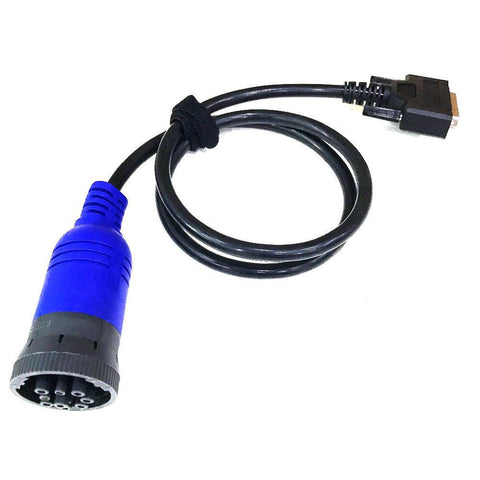

1 x DB25F/9-pin data link cable (P/N 4919780)

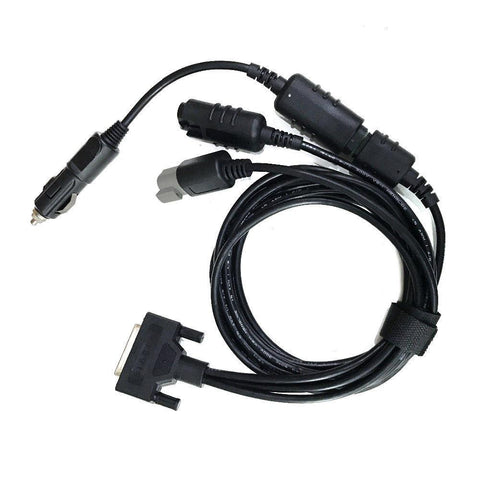

1 x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)
1 x J1939 Gender Changer adapter (P/N 3163597)
1 x J1939 Backbone adapter (P/N 3163096)

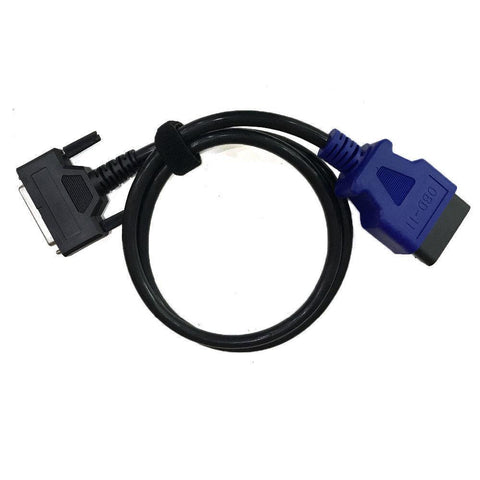

1 x ObdII cable  (P/N 4919781)
1 x Komatsu 12 pin cable
1 x INLINE 6 software CD (P/N 2892095)
1 x Plastic Carry Case

Shipping
 This Item Ships to
Delivery

Estimated between  and

Will usually ship within 1 business day.
Order high quality Vetronix products directly from Vetronix.com



Please allow 10 days for your order to arrive. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy, simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Here are 5 more great reasons to buy from us:

so


You get a full 365 days to return your item to us. If it doesn't fit, it breaks, you've changed your mind or for no reason whatsoever simply send it back to us and we'll cheerfully refund you every cent.

Returns are easy, simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

In the unlikely event that you find your item cheaper at another online store, just let us know and we'll beat the competitor's pricing hands-down.

We insist that you love everything you buy from us. If you're unhappy for any reason whatsoever, just let us know and we'll bend over backwards to make things right again.

Ordering from [yourstorename] is 100% safe and secure so you can rest easy. Your personal details are never shared, sold or rented to anyone either.

INLINE 6 is a new Technology and Maintenance Council's RP1210 standard compliant diagnostic tool, which utilizes the latest electronic technology and delivers high performance and quality at the attractive price.

Supports latest  INSITE, PowerSpec and Calterm III programs and any other software applications that are fully compliant with the RP1210 standard.

INLINE 6 can communicate with your PC through a 9-pin serial connector;

and over a Universal Serial Bus (USB) through a 4-pin standard connector.

Adapter connects to vehicle power, the SAE J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.

Data Link Adapter comes with a full kit, containing 8 basic cables, and the INLINE PC software driver. Just load the software driver to your PC, connect all the hardware, and you are ready to perform the diagnostic tasks.

Features:
1. Supports SAE J1708/J1587 and J1939/CAN data links
2. Both CAN ports auto detect between 250 & 500 kbps
3. Supports USB full speed port at up to 2M baud rate
4. Custom USB cable includes thumbscrews for secure mounting to INLINE 6
5. Supports RS-232 PC serial port at up to 115.2k baud rate
6. Fully compliant with TMC's RP1210 standard
7. Small enough to fit in pocket
8. Attractive black powder coated aluminum housing provides ruggedness
9. Derives 8V to 50V DC power from vehicle
10. Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance
11. Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports
12. Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols
13. Certified to meet European CE requirements
14. Rated for -40° to +85° C operating temperature
15. Meets rigorous  in-cab environmental test requirements

Package Contents:
1 x INLINE 6 data link adapter (P/N 2892093)
1 x USB 14-foot  cable (P/N 2892176)
1 x DB25F/9-pin data link cable (P/N 4919780)
1 x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)
1 x J1939 Gender Changer adapter (P/N 3163597)
1 x J1939 Backbone adapter (P/N 3163096)
1 x ObdII cable  (P/N 4919781)
1 x Komatsu 12 pin cable
1 x INLINE 6 software CD (P/N 2892095)
1 x Plastic Carry Case
